PRODUCT DETAILS
F parallel shaft helical reducer
Code : 2
Value :
0.00
Next
Detail

products overview:

1 parallel shaft helical gear reducer, F low energy consumption, superior performance, efficiency is as high as above 95%.

2, save a space, reliable and durable, bear high overload capacity, the power can reach more than 90 kw.

Three parallel shaft helical gear reducer, F combining international technical requirements, has the very high technology content.

4 parallel shaft helical gear reducer, small vibration, low noise, high energy saving, choose YouZhiDuan steel material, semi steel box, gear surface after high frequency heat treatment.

5, after precision machining, to ensure that the axis parallelism and positioning accuracy, it constitutes the speed reducer of gear transmission assembly is configured with all kinds of motor, formed the mechanical and electrical integration, fully guarantee the quality of the deceleration motor products use features.

Technical parameters:

Speed ratio range: basic 3.81 ~ 281.71, F/R combination can be up to 31434

The torque range: 200 ~ 18000 Nm

Power range: 0.18 ~ 200 kW

Performance characteristics:

1, parallel output, compact structure, big transmission torque, stable working, low noise, long service life.

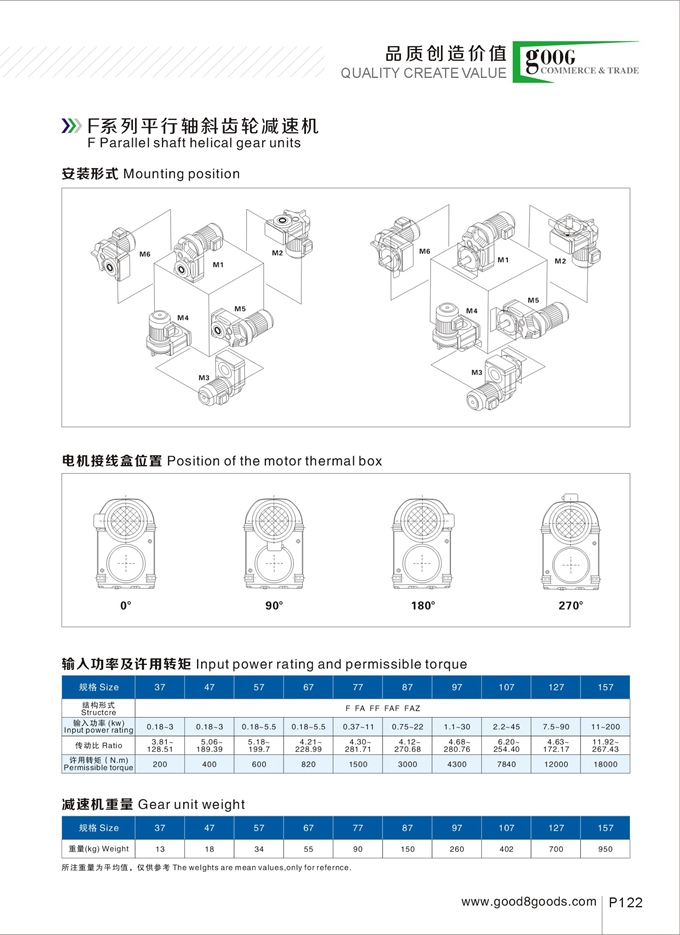

2, installation: installed base, hollow shaft, flange installation, small flange installation, torque arm.

3, direction of rotation, the same basic secondary input and output level 3 opposite; F/R combination of consulting the other.

4, output mode: the hollow or solid shaft output shaft output.

5, the average efficiency: the secondary and tertiary 96% and 94%, F/R combination efficiency 85% on average.

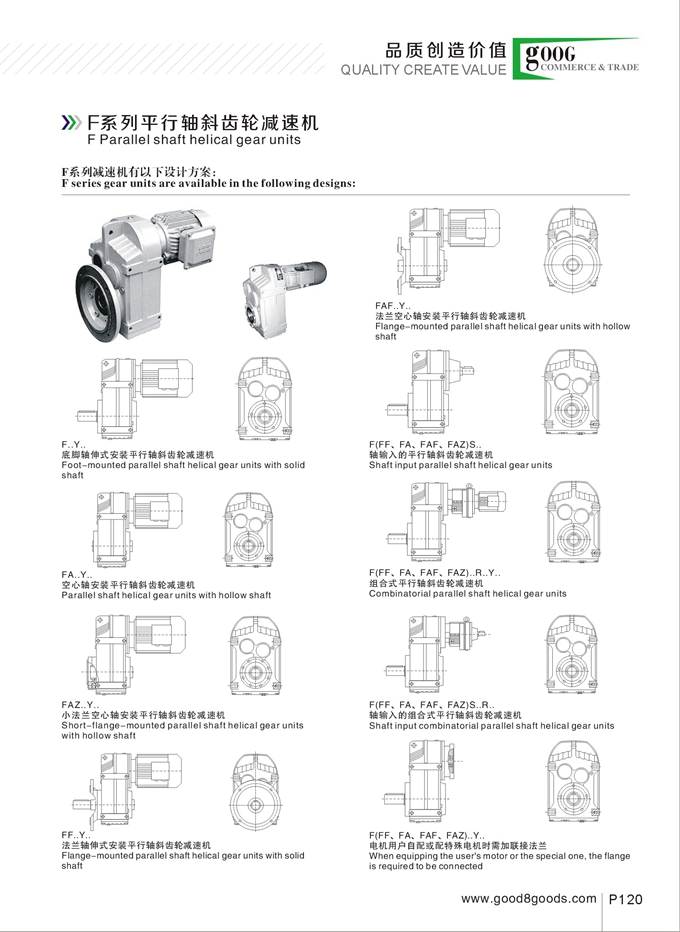

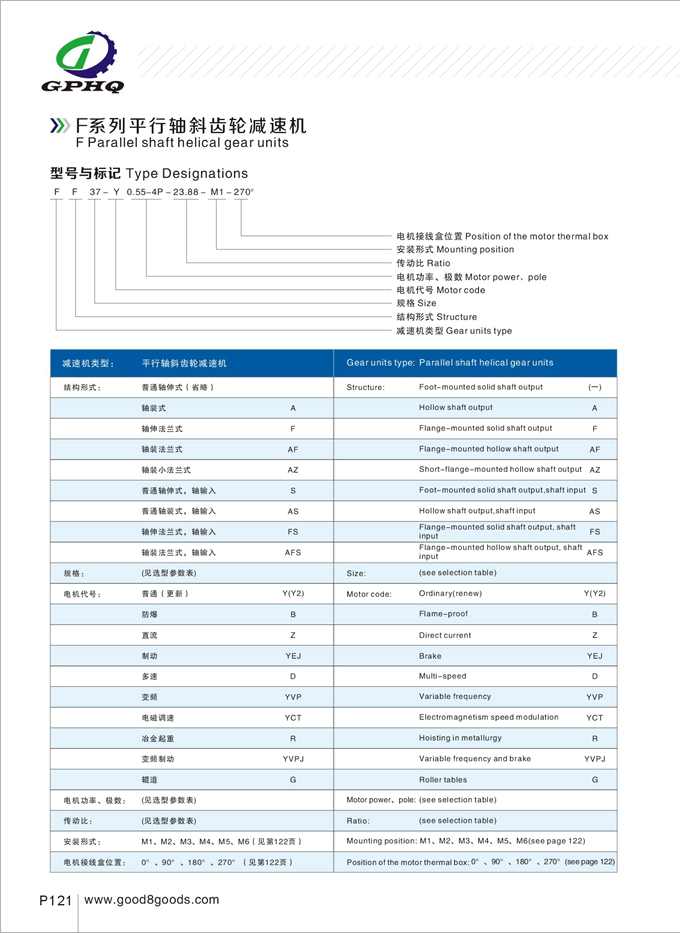

Structure:

F - shaft extension type, foot installation FF - shaft extension type, flange Ann, S - said shaft type connection with FA - input shaft

KAF - shaft mounted, flange installation

Product part information (because the file is too large,  please contact us for details, thank you ^_^) :

ModelsOutput Shaft Dia.Power(kW)RatioMax. Torque(Nm)
Solid ShaftHollow Shaft
F3725mm30mm0.18~3.03.81~128.51200
F4730mm35mm0.18~3.05.06~189.39400
F5735mm40mm0.18~5.55.18~199.70600
F6740mm40mm0.18~5.54.21~228.99820
F7750mm50mm0.37~114.30~281.711500
F8760mm60mm0.75~224.20~271.923000
F9770mm70mm1.1~304.68~276.644300
F10790mm90mm2.2~456.20~255.257840
F127110mm100mm7.5~904.63~172.3312000
F157120mm120mm11~20012.07~270.1818000
