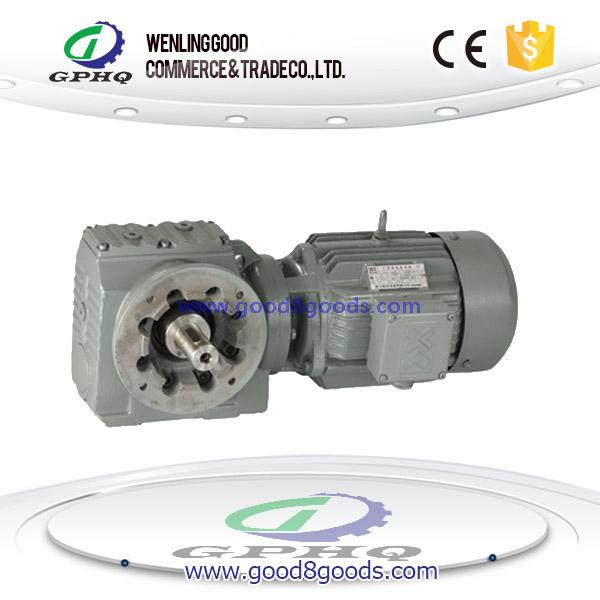

Products overview:
1, S worm helical gear deceleration machine has high technology content, helical gear and worm gear and worm in a transmission, improve the machine torque and efficiency.
2, S helical gear and worm reducer surface concave and convex have heat dissipation effect, strong vibration absorption, low temperature rise, low noise; The machine sealing performance is good, strong adaptability to the work environment.
3, S series product specifications, wide speed range, high universality, adapt to a variety of installations, safe and reliable long life performance, and implement the international standard requirements.
4, high precision of helical gear worm gear speed reducer drive, especially adapt to work in places that have requirements of frequent start, can connect all kinds of gear reducer and configure various types of motor drive, can be installed in a 90 - degree transmission operation position.
5, S series reducer adopts high wear-resisting material, key parts and pass by special heat treatment, with high machining precision, stable transmission, small capacity big, long service life, etc.
6, helical gear reducer, various types of motor can be configured to form the mechanical and electrical integration, fully guarantee the quality of the products use features.
Performance characteristics:
1, helical gear and worm gear combinations, compact structure, big reduction ratio.

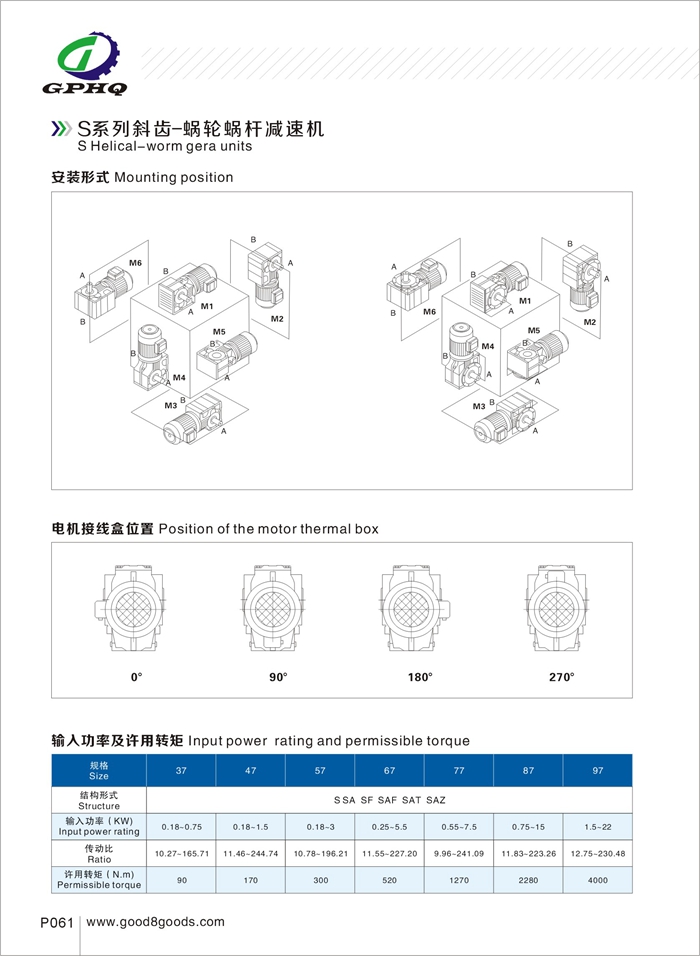

2, installation: installed foot, hollow shaft, flange installation, small flange installation, torque arm.
3, input methods: motor direct coupling, belts connecting input or input shaft, flange connection.
4, the average efficiency: reduction ratio is 77%; 7.5 69.39 70.43-288 is 62%; S/R combined is 57%.
5, and to get larger ratio R series combination.
Technical parameters:
Speed ratio range: 9.96 ~ 244.74 of basic types, S/R combination can be up to 8608
The torque range: 43 ~ 4200 Nm
Power range: 0.18 ~ 22 kW

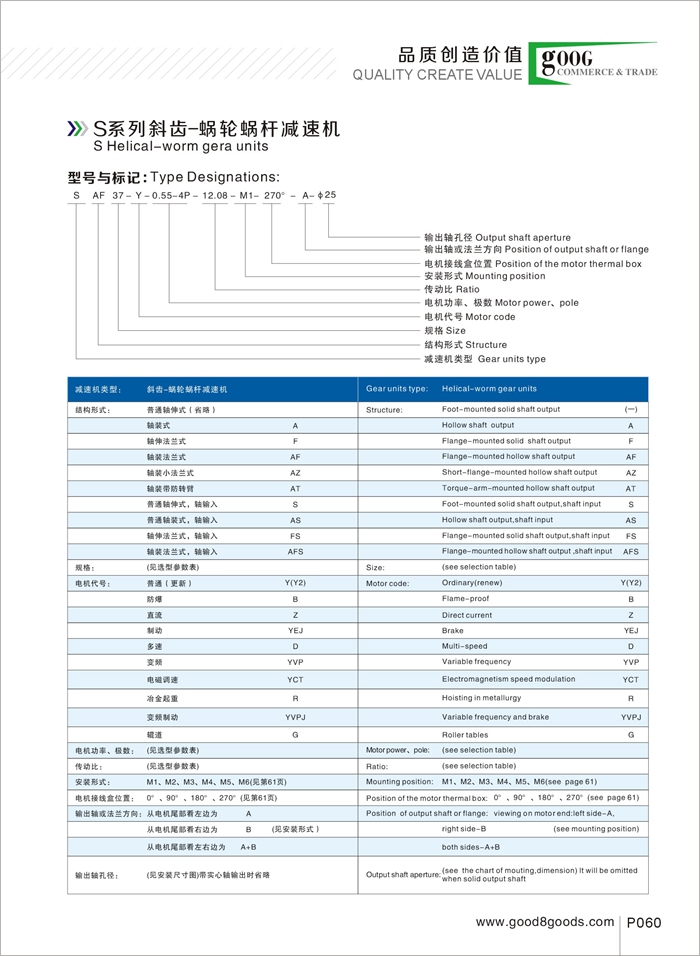

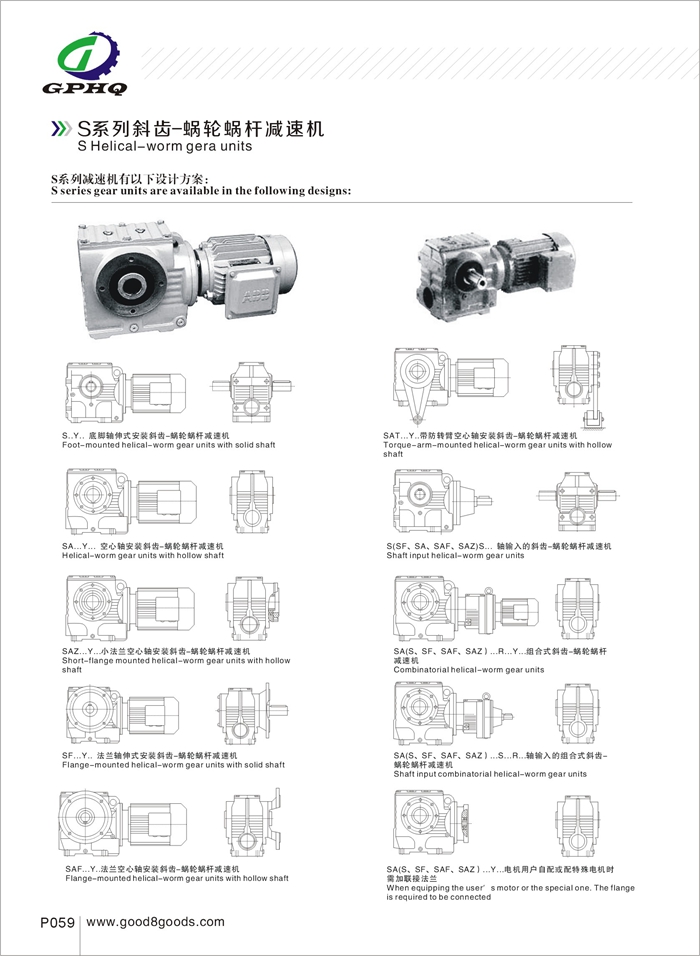

Structure:
S - SF - shaft extension type shaft extension type connection, flange installation S... S - said shaft type with SA - input shaft coupling
Type with SAF - shaft, flange installation

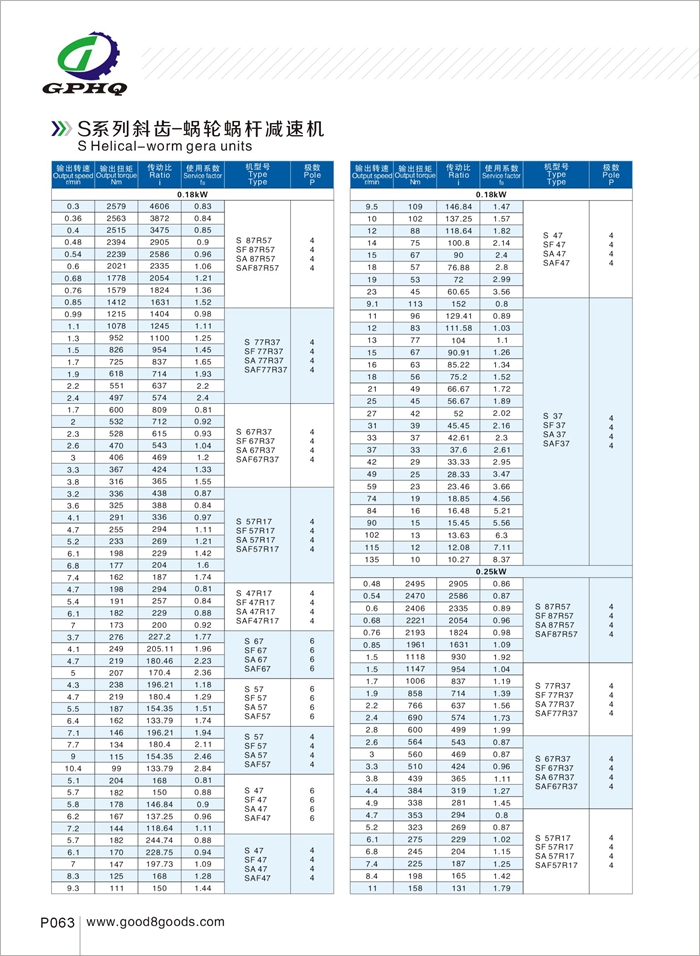

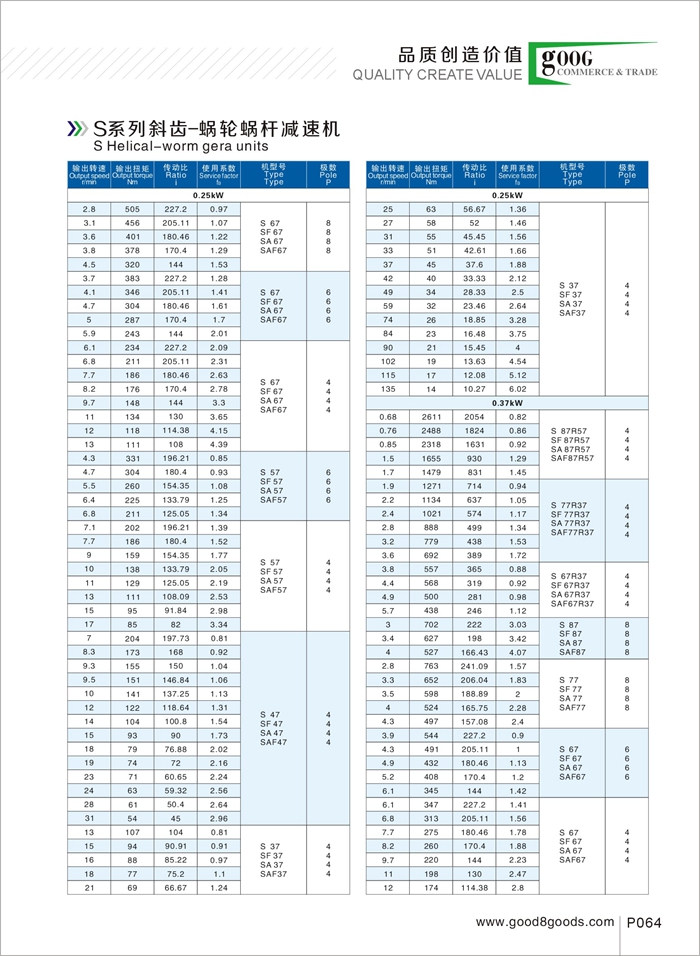

| Models | Output Shaft Dia. | Power(kW) | Ratio | Max. Torque(Nm) |
| Solid Shaft | Hollow Shaft |
| S37 | 20mm | 20mm | 0.18~0.75 | 10.27~152 | 90 |
| S47 | 25mm | 25/30mm | 0.18~1.5 | 11.46~244.74 | 170 |
| S57 | 30mm | 30/35mm | 0.18~3 | 10.78~196.21 | 295 |
| S67 | 35mm | 40/45mm | 0.25~5.5 | 11.55~22 | 520 |
| S77 | 45mm | 50/60mm | 0.55~7.5 | 9.96~241.09 | 1270 |
| S87 | 60mm | 60/70mm | 0.75~15 | 11.83~222 | 2280 |
| S97 | 70mm | 70/90mm | 1.5~22 | 12.75~230.48 | 4000 |
