PRODUCT DETAILS
K helical  bevel gear reducer
Code : A004
Price : 100
Value :
0.00
Detail

Products overview:

1 spiral bevel gear reducer, K low energy consumption, superior performance, reducer efficiency is as high as above 95%.

2, save a space, reliable and durable, bear high overload capacity, the power can reach more than 200 kw.

Spiral bevel gear reducer, K 3 small vibration, low noise, high energy saving, combined with international manufacturing technical requirements, has the very high technology content.

4, spiral bevel gear deceleration pause YouZhiDuan steel material, semi steel box, gear surface after high frequency heat treatment.

5, after precision machining, constitutes the helical gear, bevel gear, bevel gear drive assembly allocate various types of motor reducer, thus forming the integration of mechanical and electrical, fully guarantee the quality of the deceleration motor products use features.

Technical parameters:

Speed ratio range: 5.36 ~ 197.37 of basic types, K/R combination can be up to 32625

The torque range: 200 ~ 50000 Nm

Power range: 0.18 ~ 200 kW

Performance characteristics:

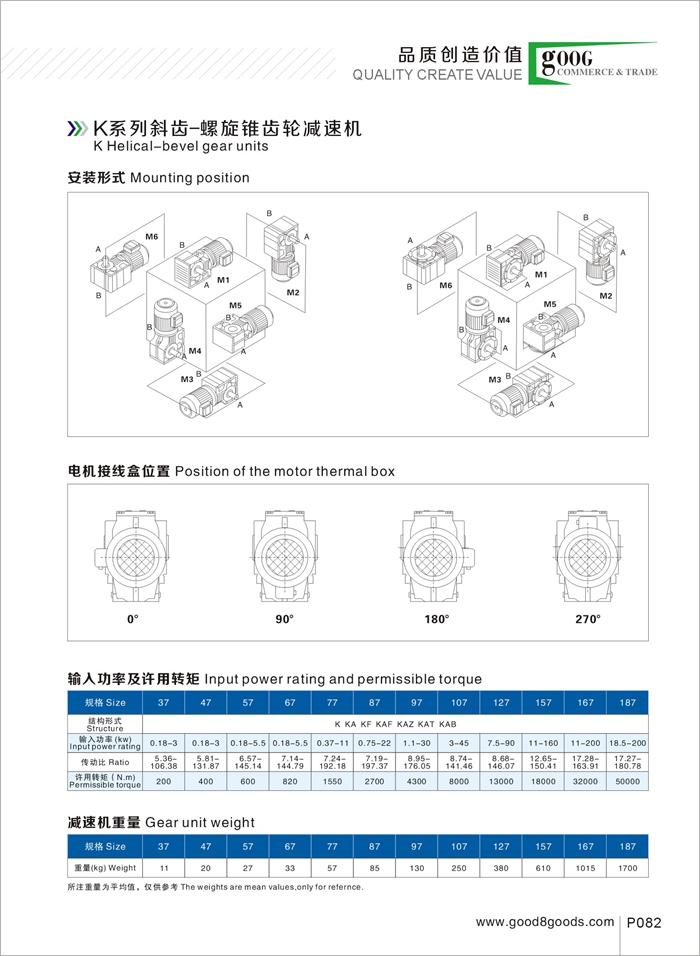

1, installation: installed foot, hollow shaft, flange installation, small flange installation, torque arm.

2, vertical output, compact structure, big transmission torque of hard-toothed surface, high precision gear ensures smooth, low noise, long service life.

3, input methods: motor direct coupling, belts connecting input or input shaft, flange connection.

4, output mode: the hollow output shaft or solid shaft output, the average efficiency of 94%.

5, and to get larger ratio R series combination.

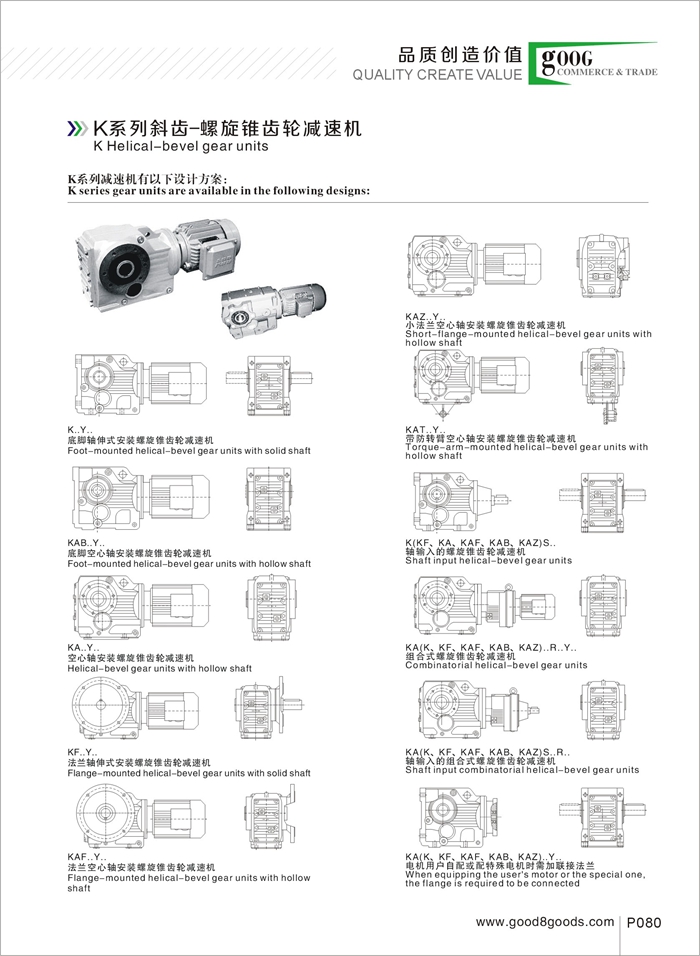

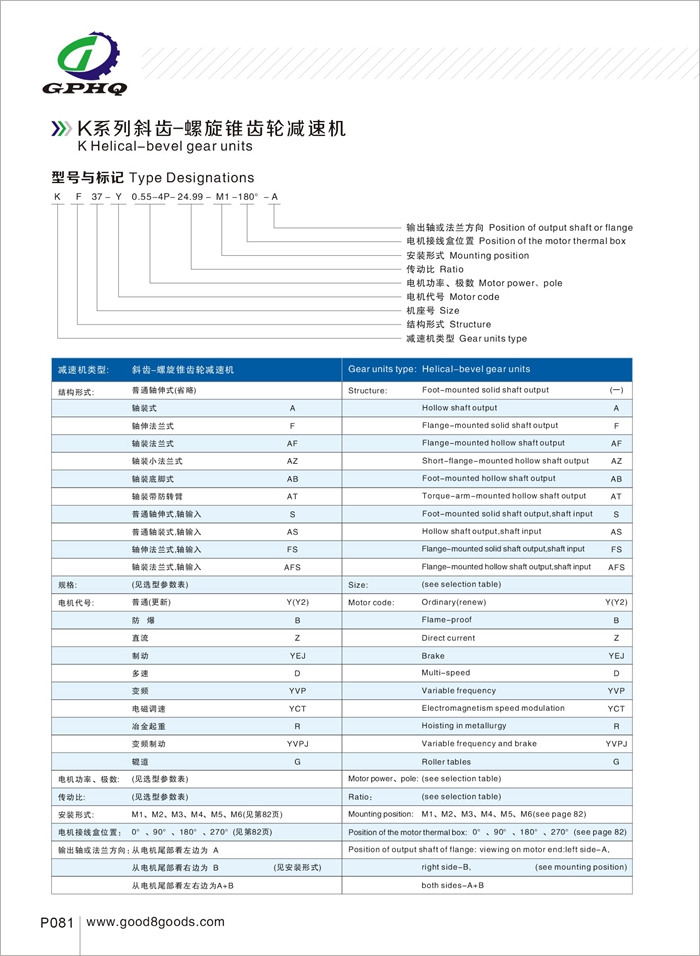

Structure:

K - shaft extension type, foot installation type with KA - shaft coupling KF - shaft extension type, the flange installation KAF - shaft mounted, flange installation

S - said input shaft

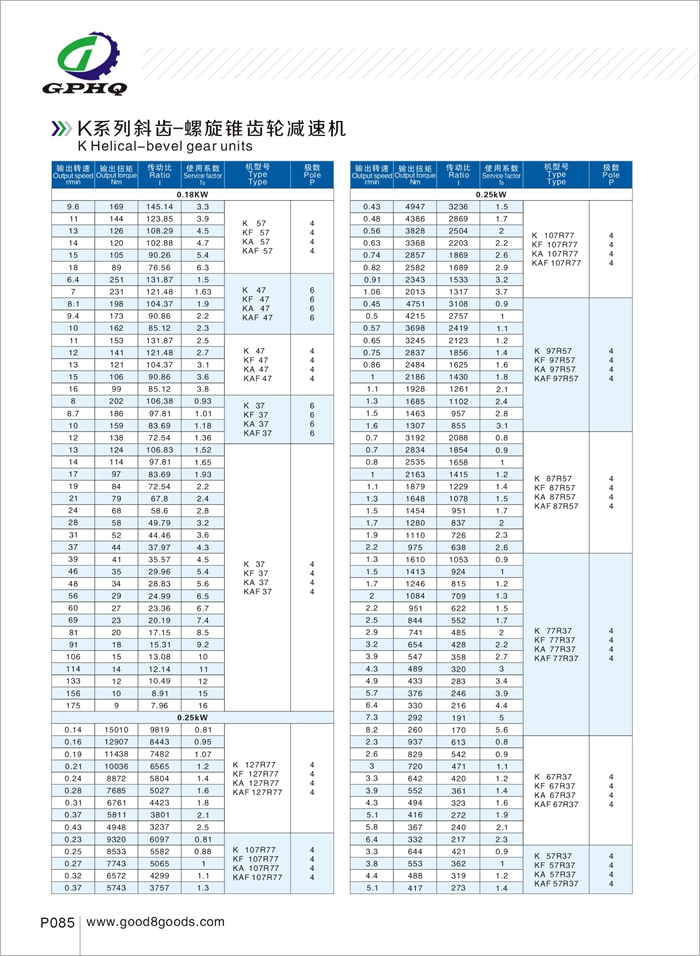

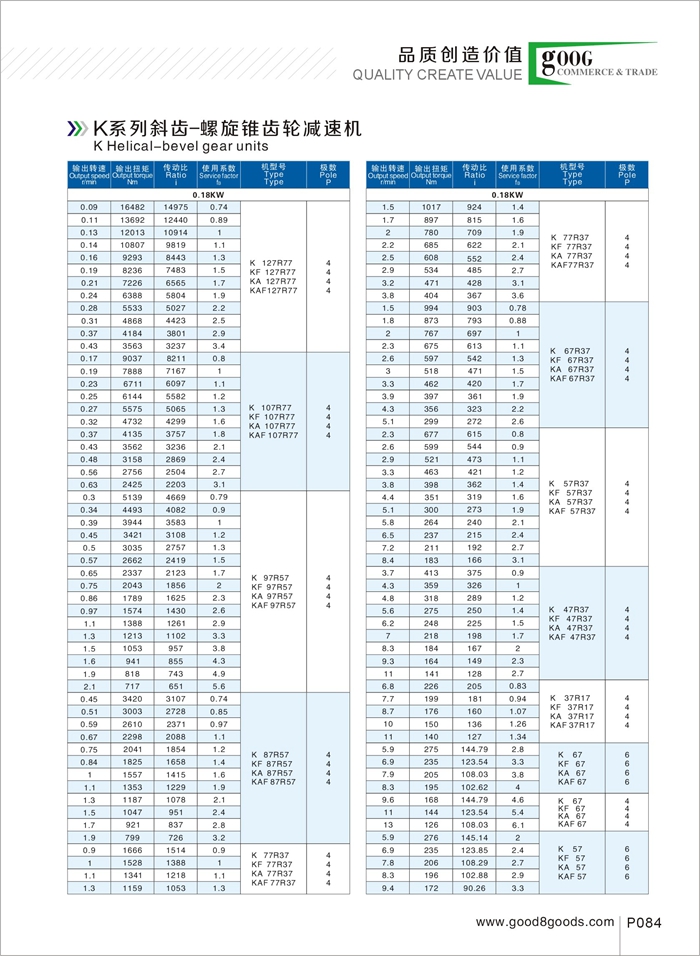

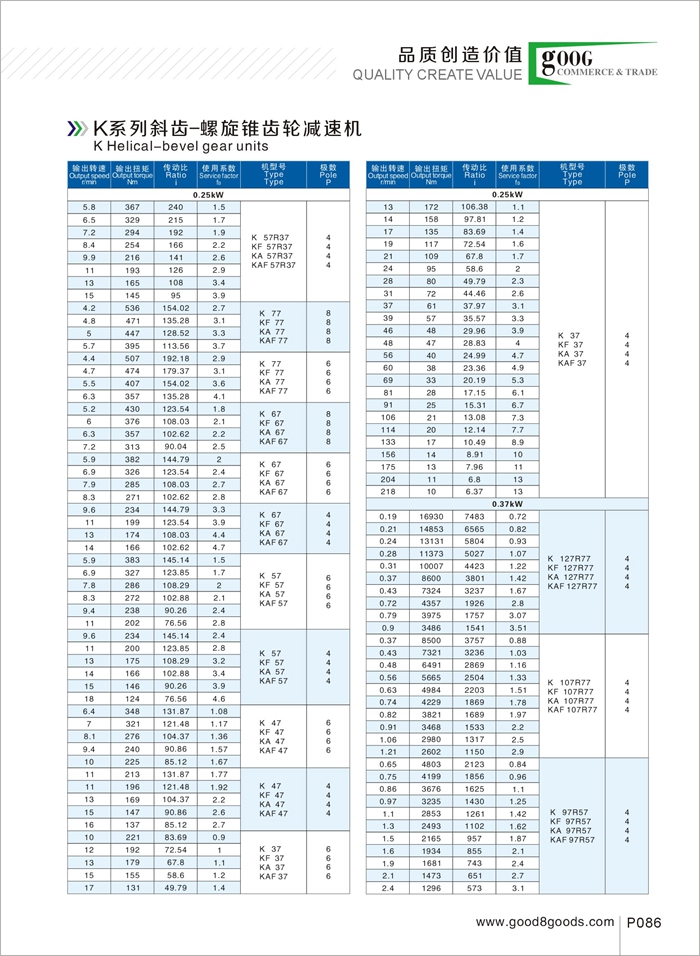

ModelsOutput Shaft Dia.Power(kW)RatioMax. Torque(Nm)
Solid ShaftHollow Shaft
K3725mm30mm0.18~3.05.36~106.38200
K4730mm35mm0.18~3.05.81~131.87400
K5735mm40mm0.18~5.56.57~145.15600
K6740mm40mm0.18~5.57.14~144.79820
K7750mm50mm0.37~117.22~192.181550
K8760mm60mm0.75~227.19~197.272700
K9770mm70mm1.3~308.95~175.474300
K10790mm90mm3~458.74~141.938000
K127110mm100mm7.5~908.68~146.0713000
K157120mm120mm11~16012.66~150.0318000
K167160mm140mm11~20017.35~164.4432000
K187190mm160mm18.5~20017.97~178.3750000
